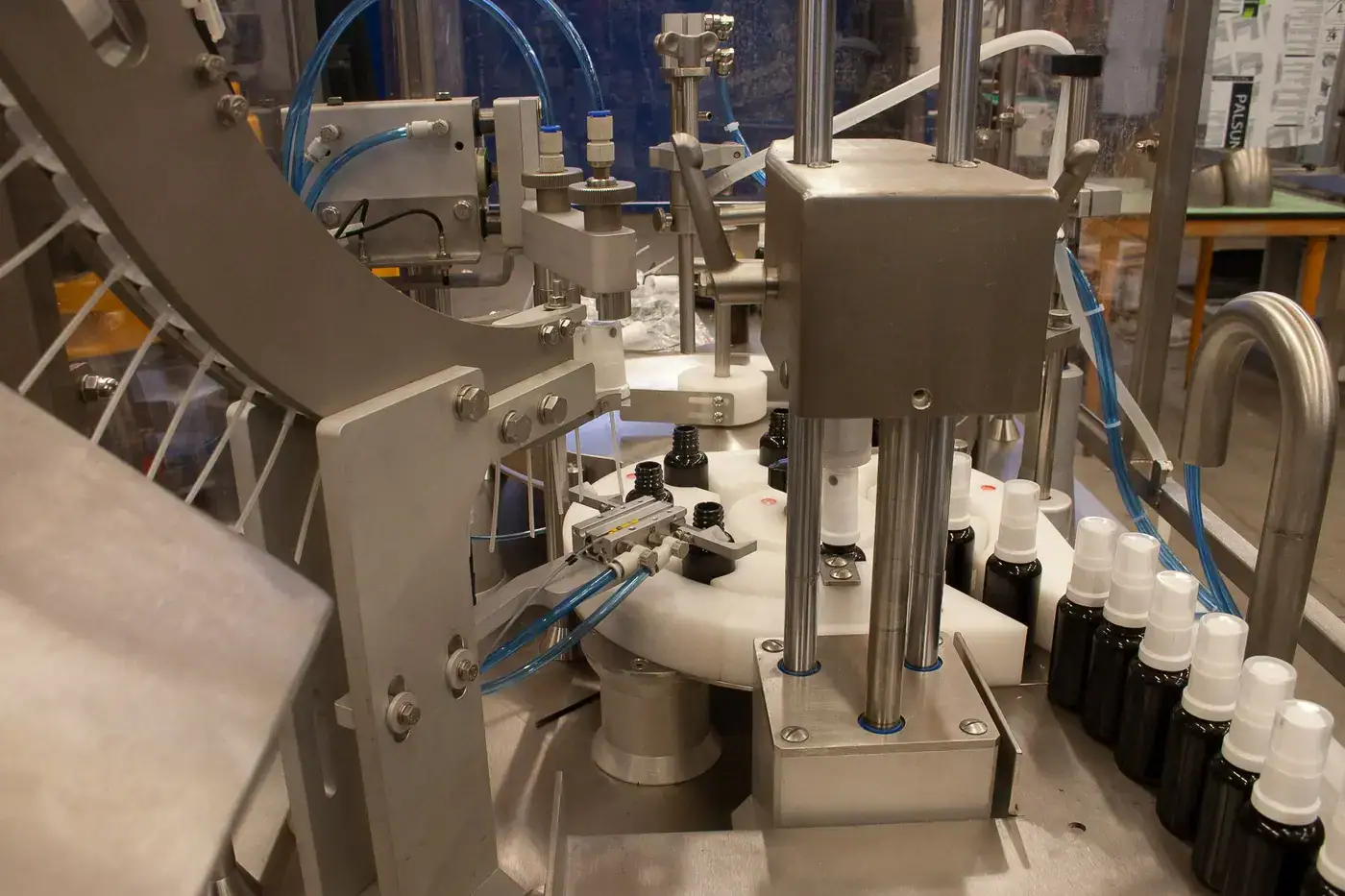

The COMPACT filling and capping machine for small ampoules is the ideal solution for pharmaceutical and cosmetic manufacturers with limited production space. Due to its compact dimensions, the machine also contributes to cost savings when constructing cleanrooms.

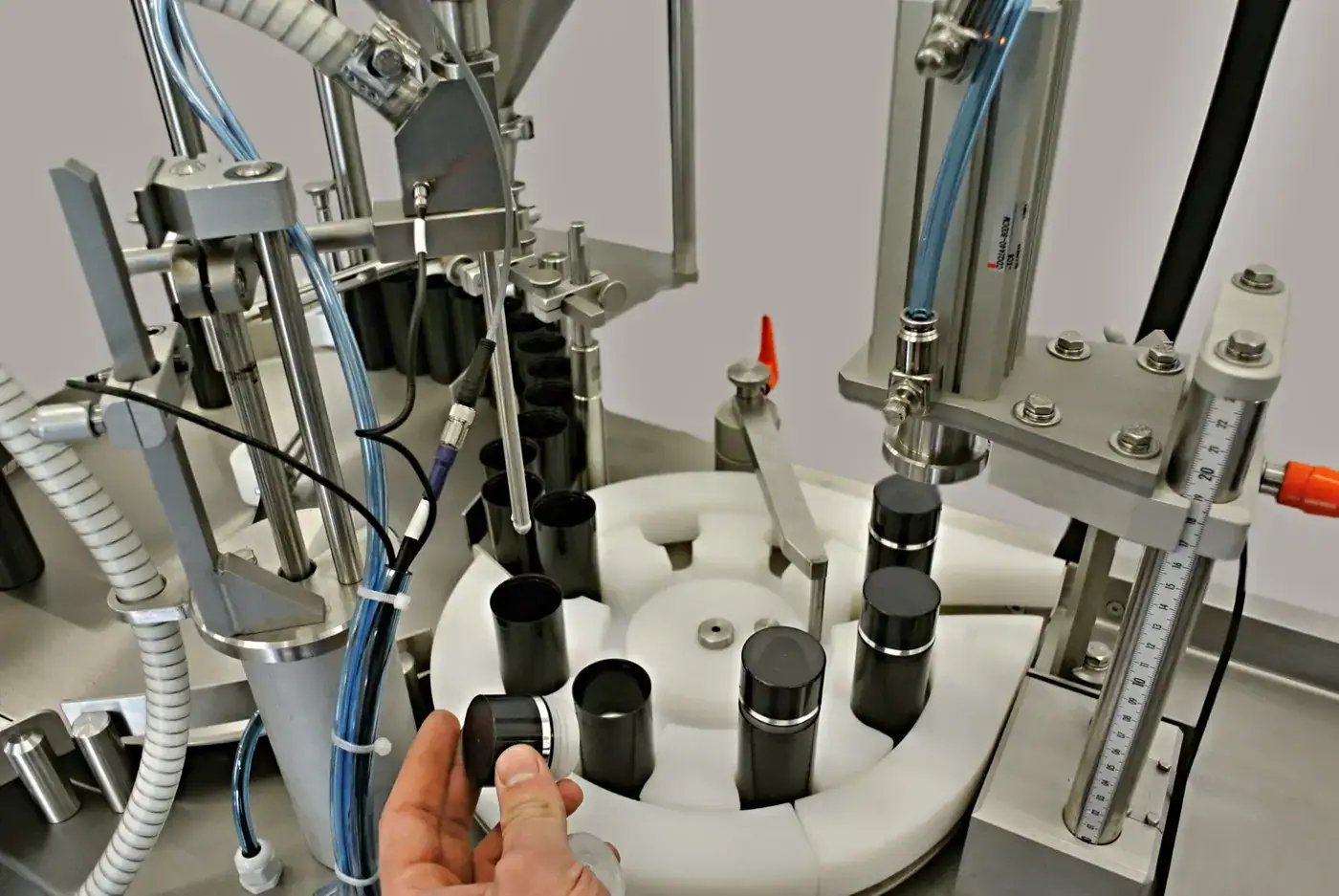

The machines can be delivered in the version SA, means as semi-automatic with an automatic filling system and semi-automatic sealing mode, as well as in the version AT, means as fully-automatic machine.The machine can be supplemented with an automatic bottle feeder for the carousel. Mostly, the machines are equipped with a peristaltic pump. There are various capping systems available: for screw caps by means of a closure head driven by a servomotor, for crimp caps and for attaching rubber stoppers and pipette stoppers or droppers.
The machine is equipped with a standard control system; various operating levels can be set. The machine is fitted with a Siemens Simatic control system with a touchscreen and achieves a performance of 1200 bottles/hour.
Key features
- Stainless steel machine frame with height-adjustable feets
- Motorised conveyor belt with adjustable speed

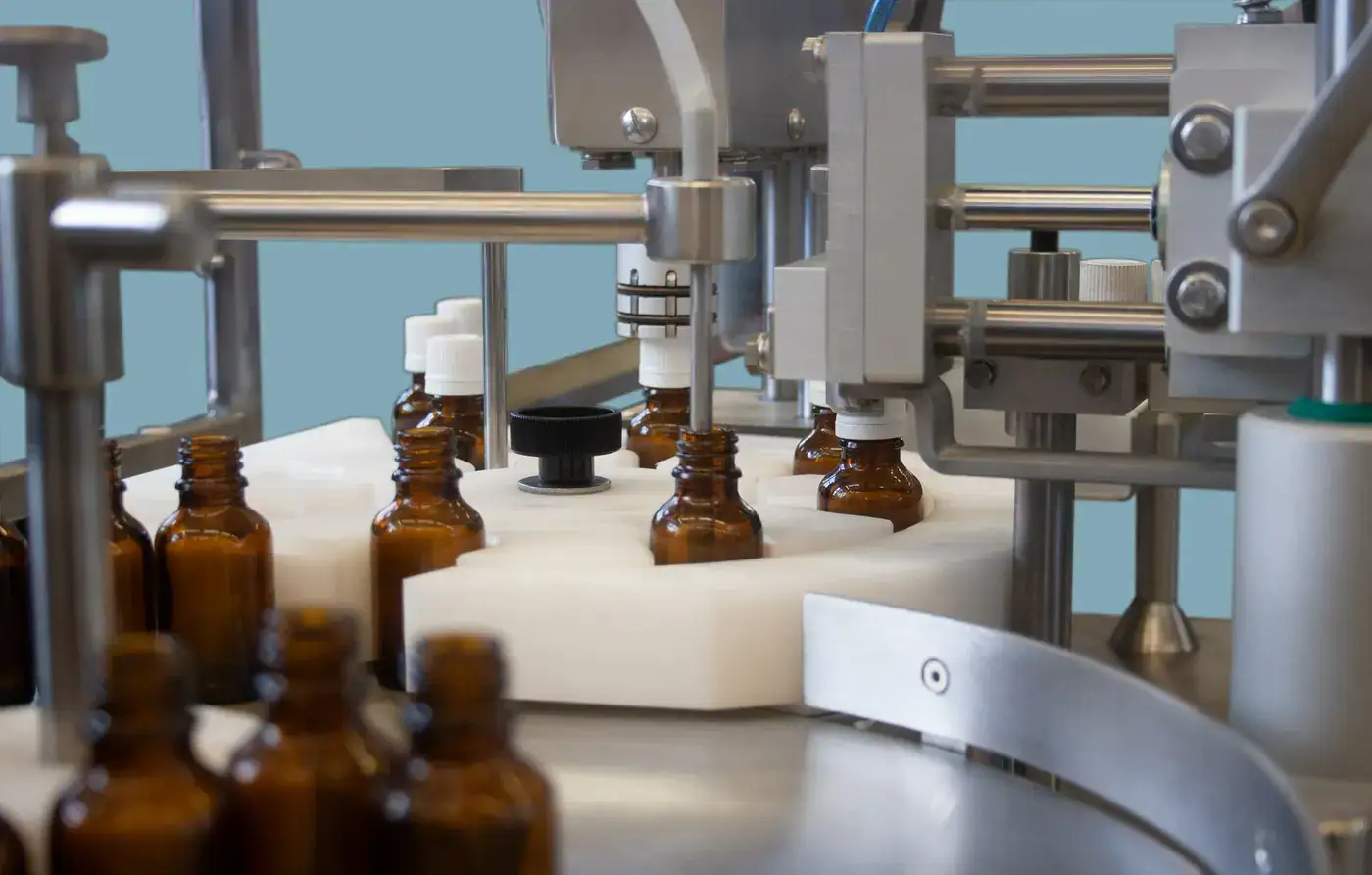

- Starwheel for transporting the container between the stations
- Container presence detection sensor
- Product tank including filling level control
- Filling station with peristaltic pumps or flow meters
- Closing of the filling nozzles
- Vibrating or rotary caps orientator
- Pick and Place device

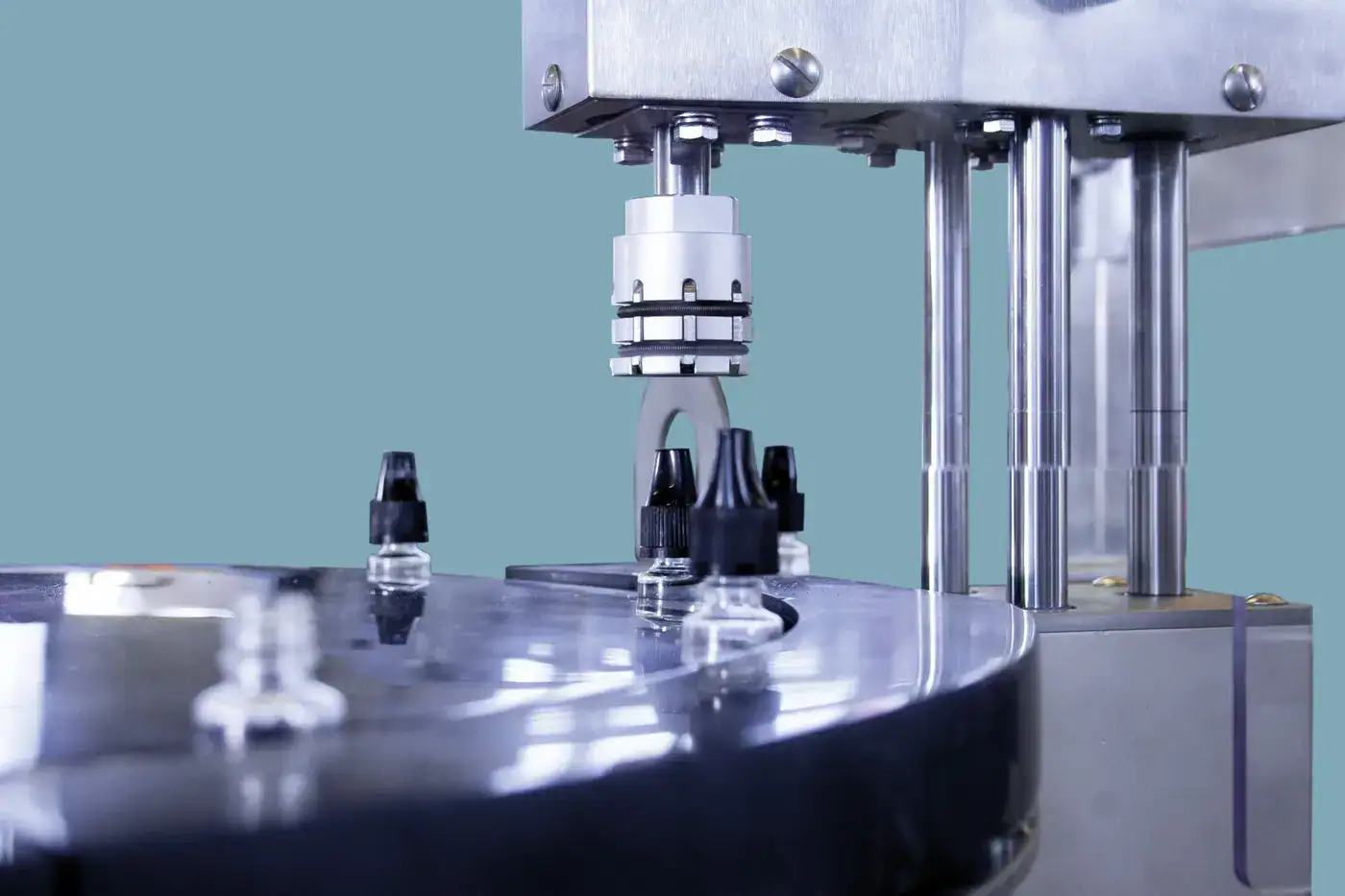

- Capping head with adjustable torque
- Sensor for detecting a full outfeed conveyor
- Control panel with touchscreen
- CE safety guards
Options
- Caps elevator with hopper
- Heating the product tank
- Agitator in the product tank
- Undercap application station
- Sensor for caps/undercaps presence detection
- Rejector of bottles without cap
- Material certificates for the pharmaceutical industry
- Validation Packages IQ, OQ
- Laminair box with Hepa filters
- ATEX version
- Remote access
