The filling and sealing machine POWDERLINE is designed for filling powders and granules into jars, bottes, plastic containers and canisters as well as for capping them with screw-on, press-on and twist-off caps.
Key features
- Stainless steel machine frame with height-adjustable feets
- Motorised conveyor belt with adjustable speed

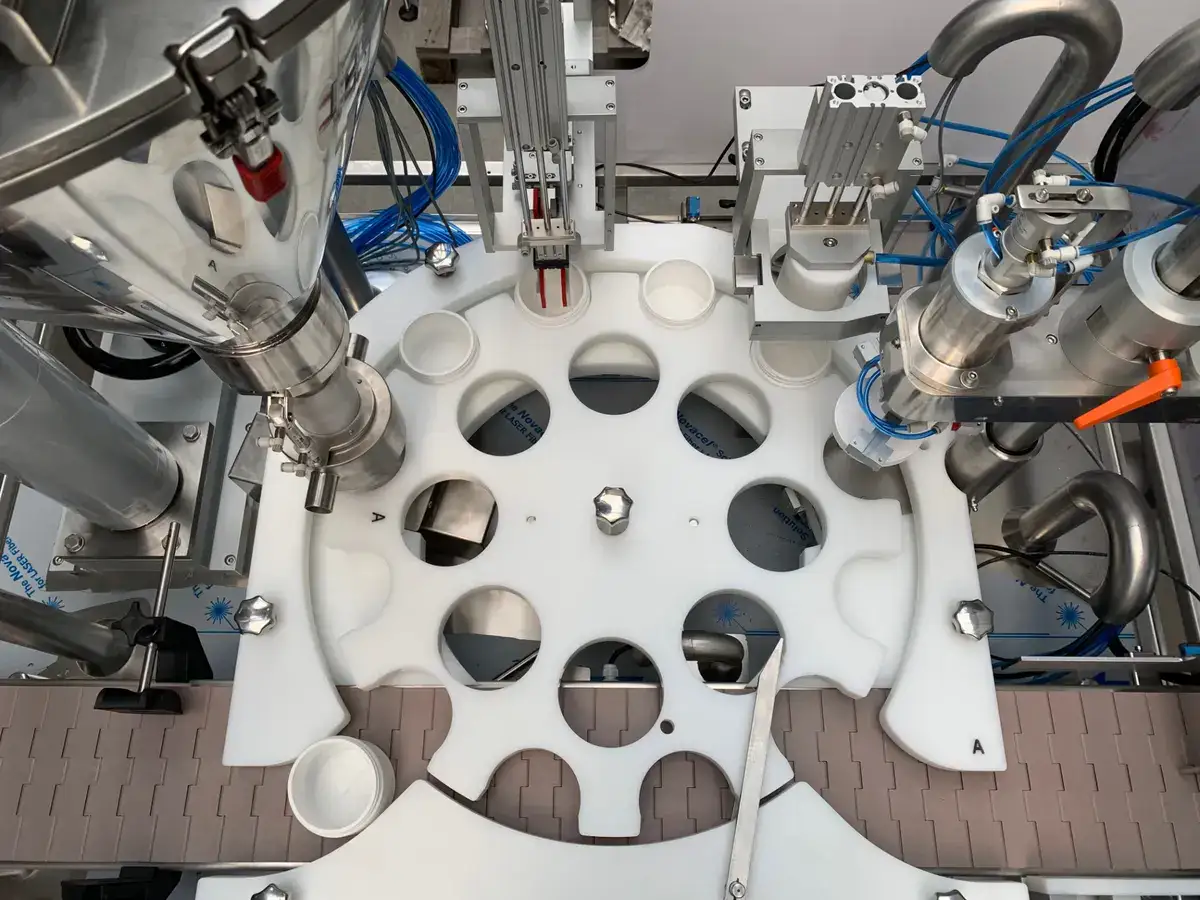

- Starwheel for transporting the container between the stations
- Container presence detection sensor
- Product tank including filling level control

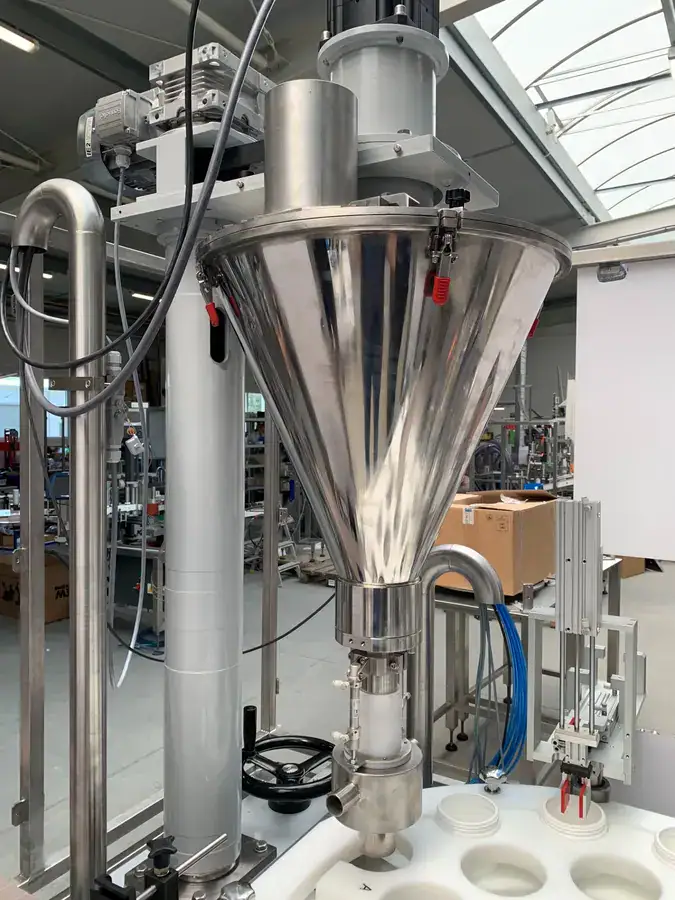

- Powder filling station with screw feeder
- Closing the filling nozzles
- Vibrating or rotary caps orientator
- Pick and Place device
- Capping head with adjustable torque
- Sensor for detecting a full outfeed conveyor
- Control panel with touchscreen
- CE safety guards
Options
- Caps elevator with hopper
- Vibratory feeder
- Product container with agitator
- Load cell below filling position
- Cap detection sensor
- Rejector for bottles without cap
- Material certificates for the pharmaceutical industry
- Validation Packages IQ, OQ
- Laminair box with Hepa filters
- ATEX version
- Remote access
Process Description

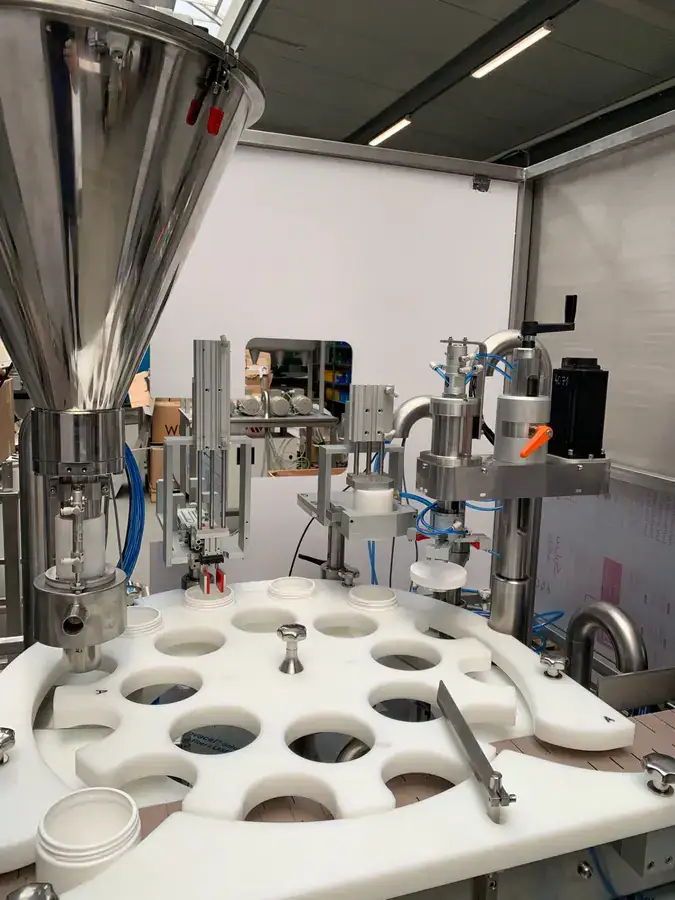

- Empty containers are transported via a feed belt to the starwheel. At the infeed, there is a sensor for detecting the container. In the first station, they are filled with powdered material. The machine can be equipped with 1 or 2 filling stations. Screw feeders are used for filling. Other types of dosing systems are also available (volumetric fillers, multihead weighers, etc.).

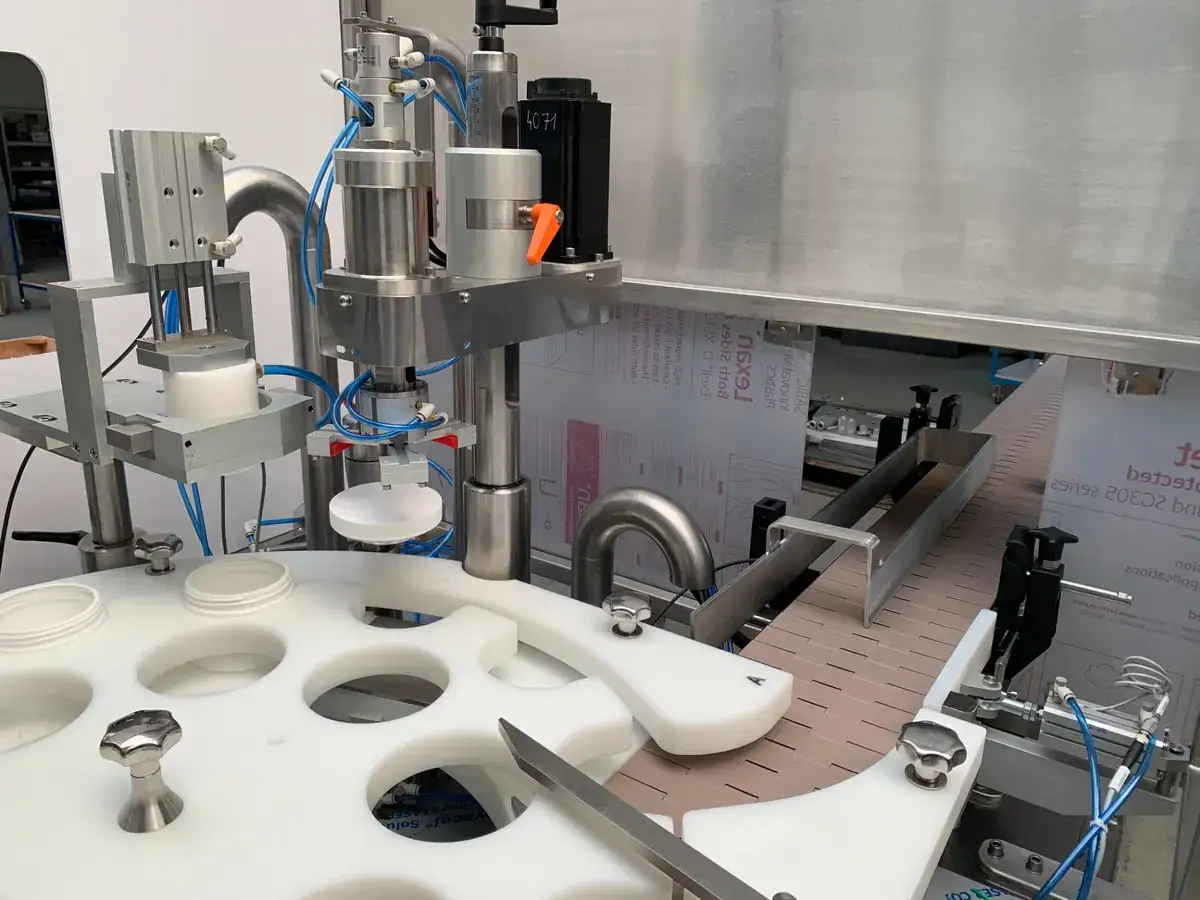

- The next step after filling is capping. In its standard configuration, the machine is equipped with a screw-cap capping device, consisting of a cap feeder, a cap chute, a pick-and-place unit, and a capping head. This capping device can be replaced by a twist-off, press-on, or another system. The filled and capped containers leave the machine on the outfeed conveyor.
