The monoblock CUPLINE is suitable for filling, sealing with foil and lidding of cups, trays and pots.
Both liquids and pastes can be filled, as well as products with fruit and vegetable pieces.
Key features
- Bottom filling system
- Filling station with lobe pump
- Product hopper with level control
- Sensor to detect the cups presence in rotary table
- Rotary table for moving cups between stations
- Cup magazine with automatic destacker

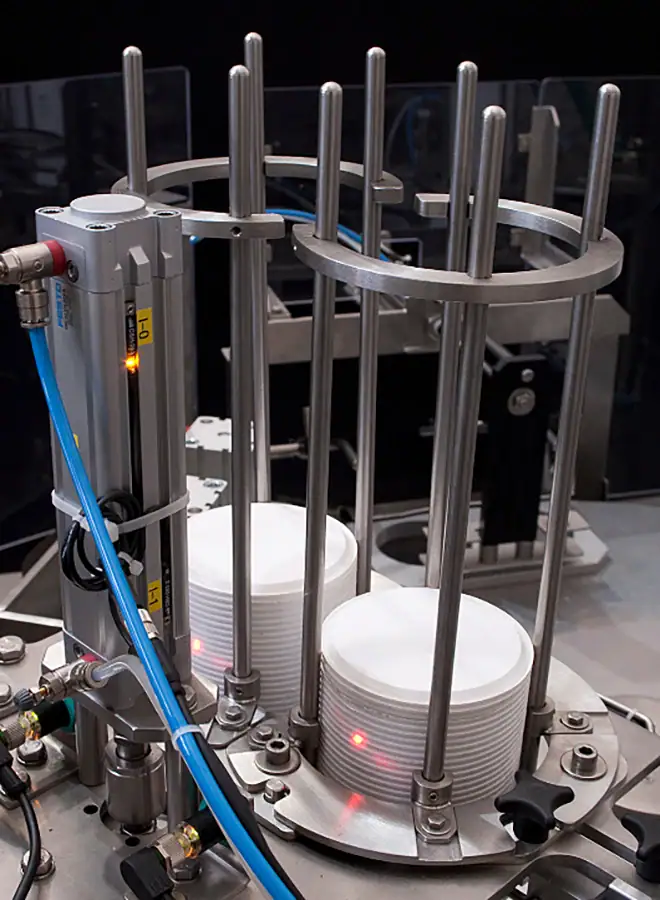

- Lid magazine with automatic destacker
- Machine frame with height-adjustable feets
- Pneumatic closing of the filling nozzle(s)
- CE safety guards
- Control panel with touchscreen
Options
- Outfeed conveyor
- Foil sealing from the reel
- Pre-cut foil seal
- Auger filler for powder products
- Agitator in the product tank
- Heating the product tank
Process Description

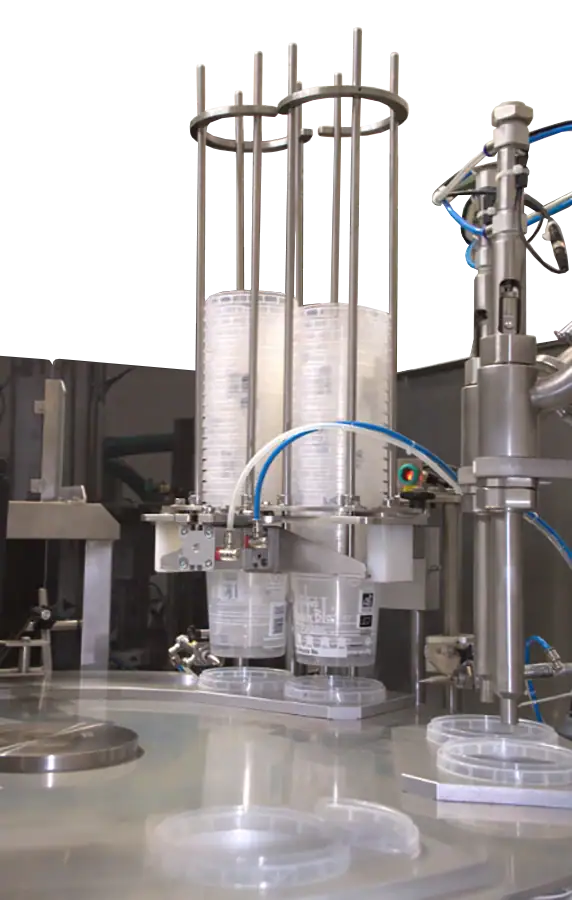

- The operator places a stack of cups into the cup’s magazine. The cups are picked up from the storage container using a vacuum suction pad, which places the cup onto the rotary table. This table transports the cups between the stations inside the machine. The first station is filled using a lobe pump.

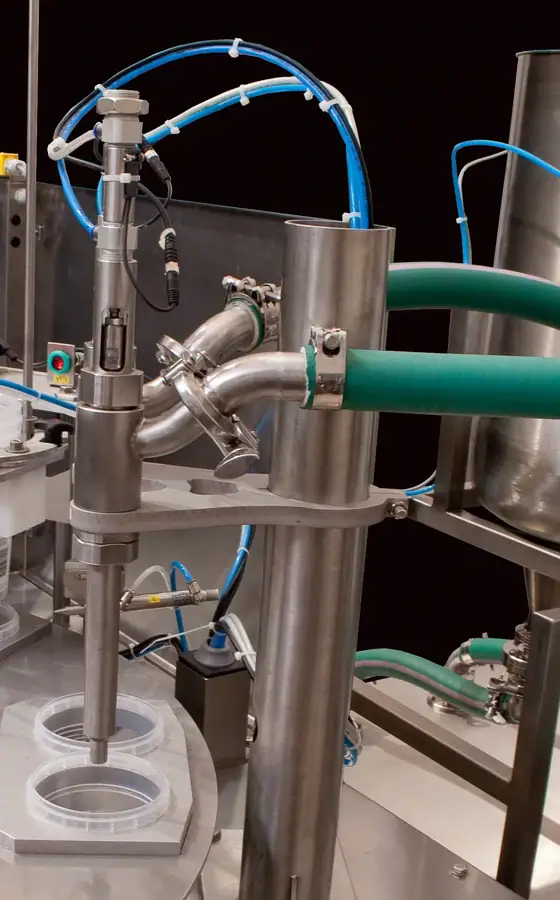

- The machine is equipped with a system for lifting the cups to fill them from the bottom, thus avoiding air pockets. The next station is the lid applicator, which consists of a lid magazine and a mechanism for applying the lids. The machine can also be equipped with an applicator for aluminium or plastic film. After filling and sealing, the cup is conveyed to the discharge table or conveyor belt.
